Socket weld & threaded forged fittings, manufactured in Copper-Nickel, Copper, Brass & Bronze.
Socket weld elbows, tees, couplings and unions, forged to ASME B16.11.

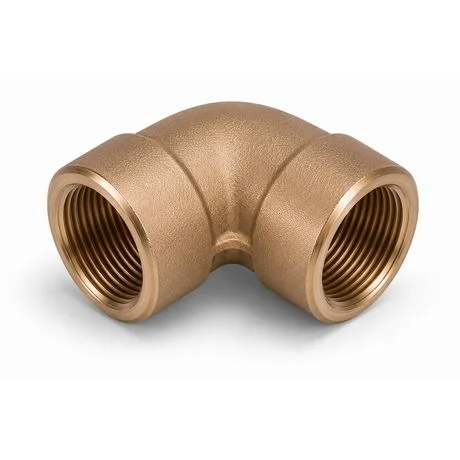

Threaded elbows, tees, adapters, plugs and nipples, forged to ASME B16.11.
Technical Data
Forged from solid bar stock and machined to ASME B16.11 dimensions, in the alloy grade & pressure class your system requires.
| Material | UNS No. | Governing Material Spec | End Connections | Size Range |
|---|---|---|---|---|
| Copper Nickel 90/10 & 70/30 | C70600 / C71500 | ASTM B124 | Socket-weld & Threaded | 1/8" – 4" |
| Copper (DHP) | C12200 | ASTM B124 | Socket-weld & Threaded | 1/8" – 4" |
| Brass | C37700 | ASTM B124 | Socket-weld & Threaded | 1/8" – 4" |
| Bronze | C51000 | ASTM B124 | Socket-weld & Threaded | 1/8" – 4" |
Dimensions per ASME B16.11 — Forged Fittings, Socket-Welding & Threaded. Forging stock per ASTM B124 (copper alloy forging rod, bar & shapes). Mill test certificates issued per EN 10204 3.1 on request.
Dimensions
ASME B16.11 defines forged fittings by pressure class rather than schedule — the class sets the wall thickness & rated working pressure for a given end connection.
| Class | End Connection | Typical NPS Range | Notes |
|---|---|---|---|
| 2000 | Threaded | 1/8" – 4" | Lighter wall, lower-pressure service |
| 3000 | Socket-weld / Threaded | 1/8" – 4" | Most common class for general piping |
| 6000 | Socket-weld / Threaded | 1/8" – 2" | Heavier wall for higher-pressure service |
| 9000 | Socket-weld | 1/8" – 1" | Small-bore, high-pressure service |
Rated working pressure depends on alloy, temperature and class per ASME B16.11 — share your design pressure & temperature and we'll confirm the correct class for your Copper-Nickel, Copper, Brass or Bronze fitting.
Send us your drawings, sizes and standards — our team will get back to you with a detailed quotation for your Copper-Nickel, Copper, Brass or Bronze piping requirement.
